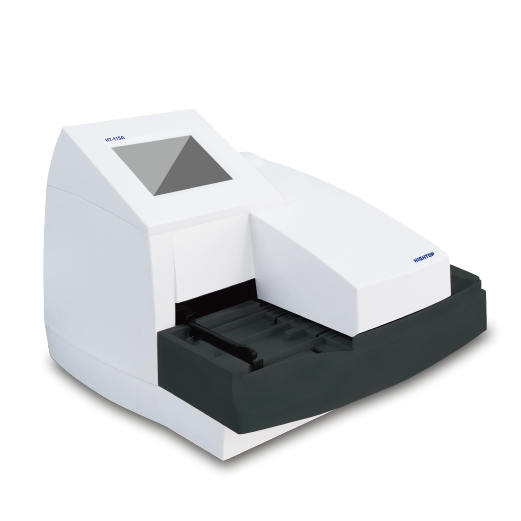

Urine Analyzer HT-115A-Urinalysis Analyzers-Qingdao Hightop Biotech

Fast
7 seconds/sample
Immediate test by just one click
High Compatibility
Support multiple needle printer model
Support connection to LIS
High Efficiency
Automatic collection of scrap strips
High brightness cold light source, long service life
User Friendly
Customizable test parameters
Touch screen display, allows multi-language system

Test Item	LEU, NIT, URO, PRO, pH, BLD, SG, KET, BIL, GLU, VC, Ca, CRE, MCA, A:C
Applicable Test Paper	4A, 4S, 8A, 10A, 10S, 11A, 12A, 13A, 14A
Testing Type	Qualitative or semi-quantitative dection of human ureine samples
Principle of Measurement	The reflection photometer measured the color change of urine test strip, calculated the relative item concentration value, and output semi-quantitative results
Test Wavelength	525mm, 572mm, 610mm, 660mm
Test Speed	514 tests/hour
Reporting Mode	LCD display, serial port output. Bulit-in high speed low noise thermal printer, printing paper model 55-57mm, external parallel printing output. Chinese, English, and Russian system optional.
Display System	7" color touch LCD screen
Report Storage	5,000 test reports; 2,000 QC reports
External Interface	Annotated RS-232 interface can be connected to computer for data exchange and software upgrade. Standard parallel interface can directly drive the external printer.
Working Pressure	100~240V, 50/60Hz
Size (L×W×H)	380mm×380mm×275mm
Weight	6.5Kg
Note	This urine analyzer is closed system, which should be used with HIGHTOP urinalysis strips
